Hi-Finity

Minimal Sliding Hi-Finity Reynaers Aluminium Manufacturer Mparolas Aluminium Systems

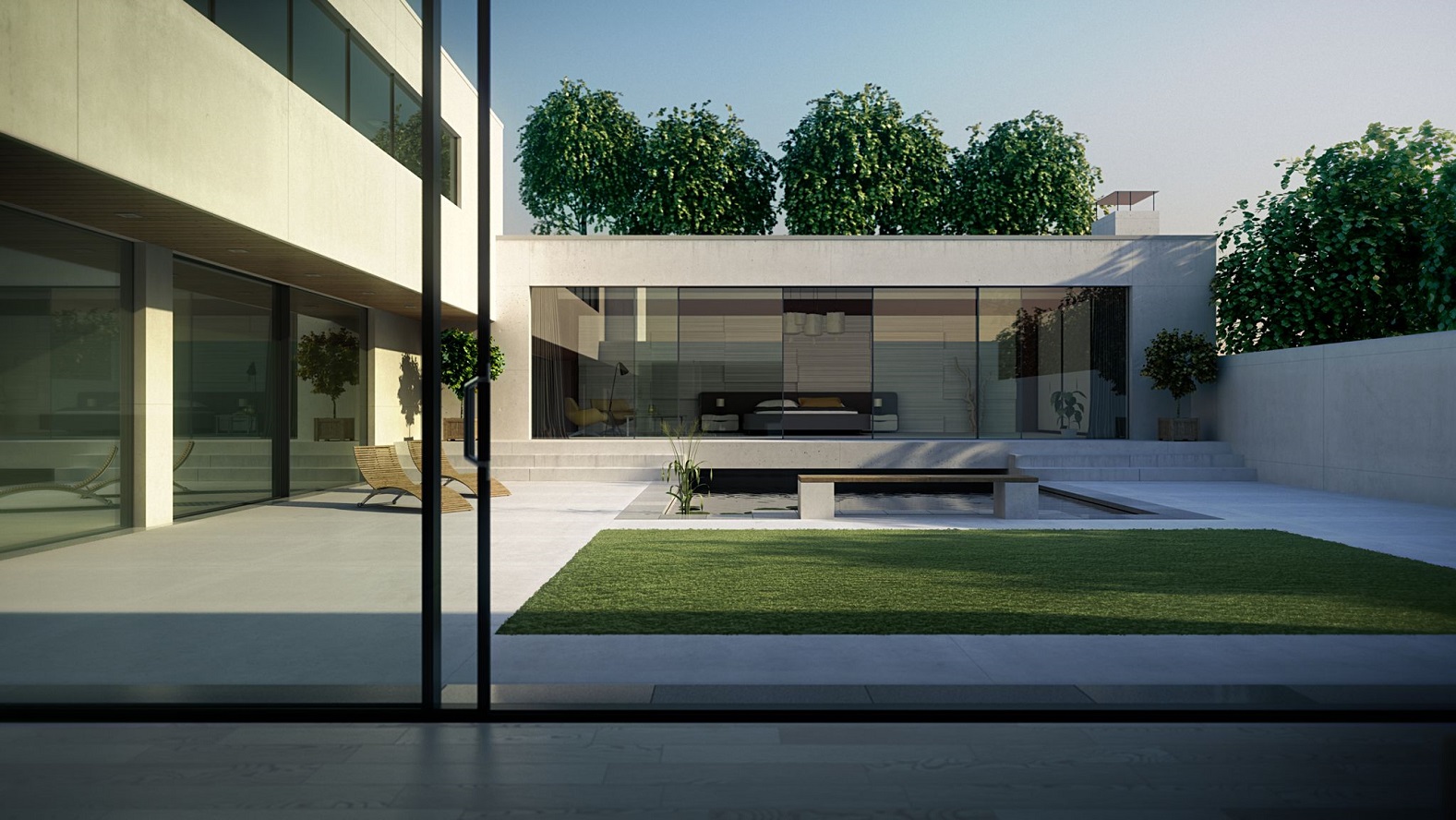

      The infinite view

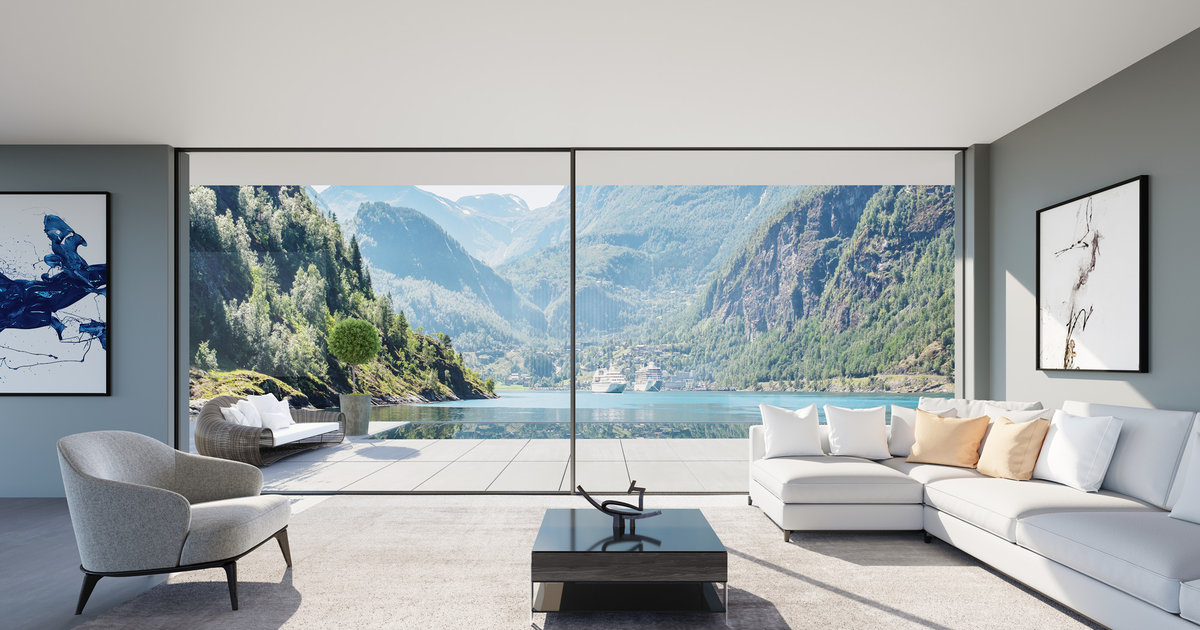

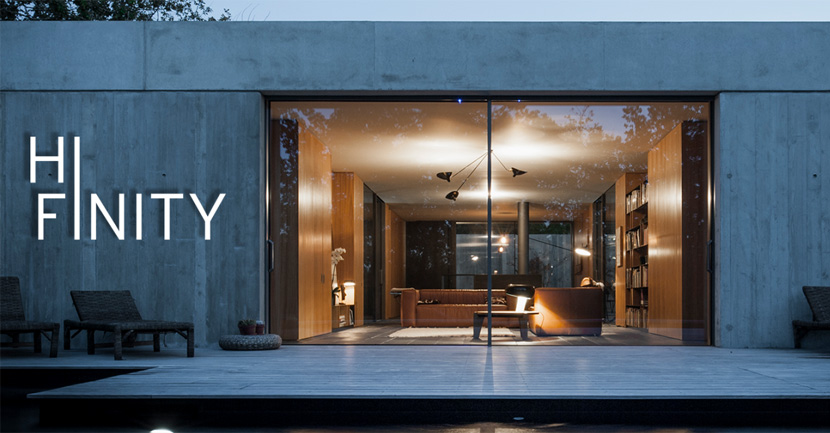

Enjoy an infinite view with ultimate performances! The ultra-slim design of the Hi-Finity sliding system creates large transparent surfaces, with a light, sleek and elegant appearance.

This fully transparent and accessible sliding window seamlessly extends the house’s interior to the outside. Despite the minimal visual sidelines, the systems high strength allows Hi-Finity to carry the weight of a large sliding glass pane up to 750 kilograms. Fixed panels up to 1200 kg.Minimal Sliding Hi-Finity Reynaers Aluminium Mparolas Aluminium

This in combination with the high energy performance and the minimalistic look makes this product the best solution for low-energy contemporary architecture.

For a higher level of comfort a concealed motor allows you to open the vents with the push of a button, or by connecting the motor to your home automation system. This high performance motor guarantees optimum convenience during use and is a safe and reliable solution.



Hi-Finity is an exclusive system for certified fabricators.

> Watch the HI-Finity video here <

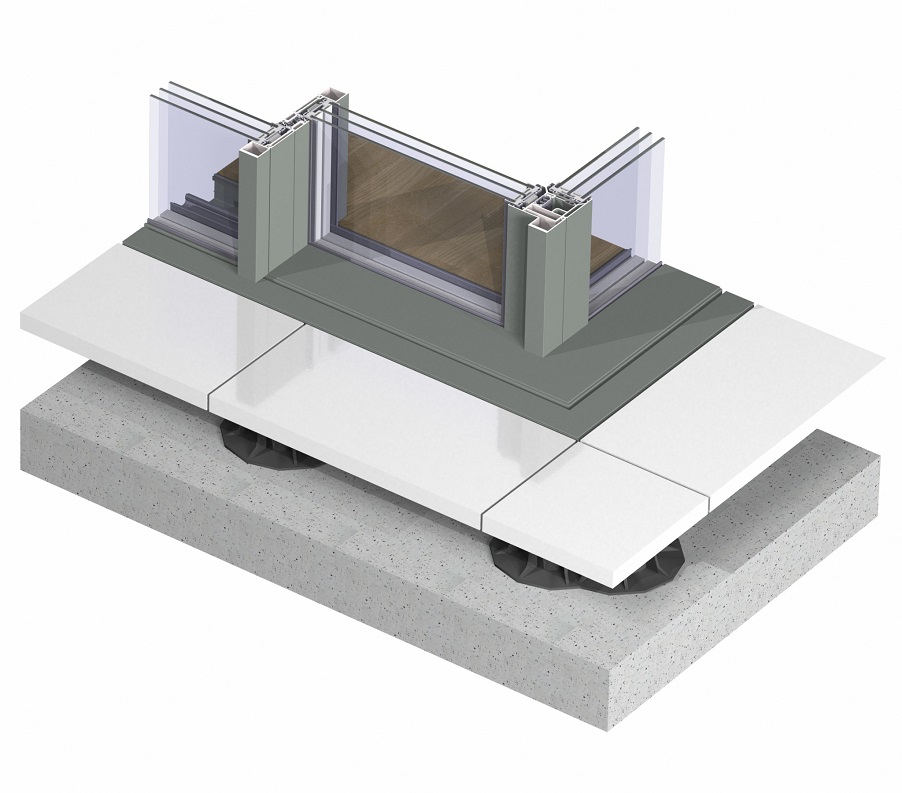

Hi-Finity Open Corner

Hi-Finity Open Corner

The infinite view

Comfort comes in a lot of shapes and forms. In this case, it translates to an integrated Flyscreen, that maintains the elegant lines of HiFinity. But it is also reflected in a concealed motor, that opens the sashes with the push of a button, or can be operated through your home automation system. Our high performance motor guarantees optimum convenience during use, and is a safe and reliable solution.

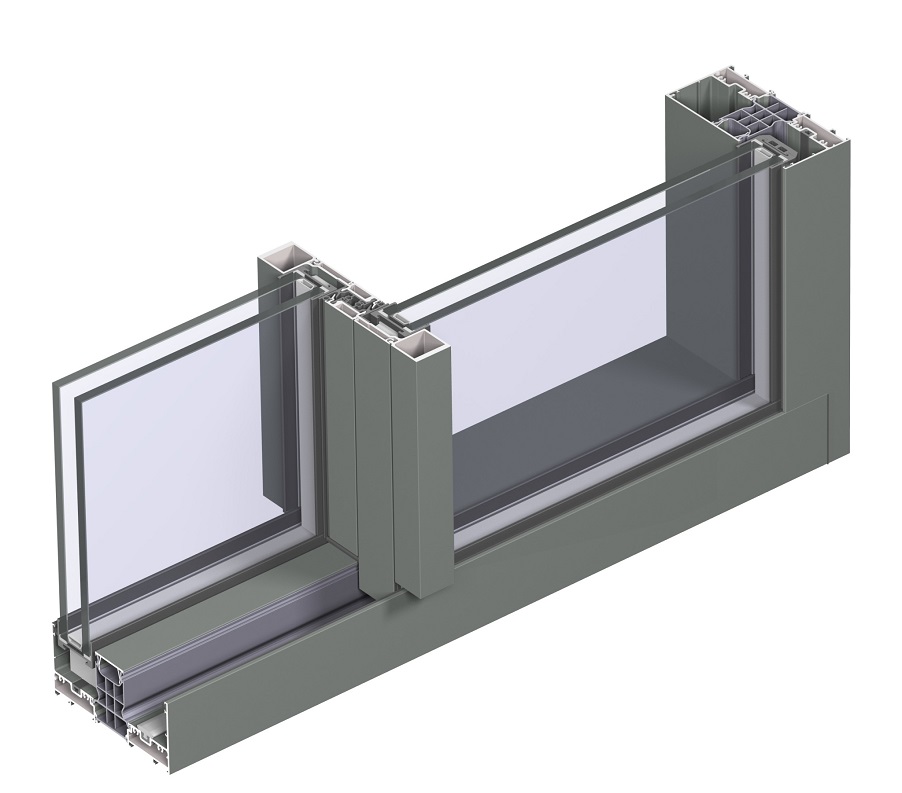

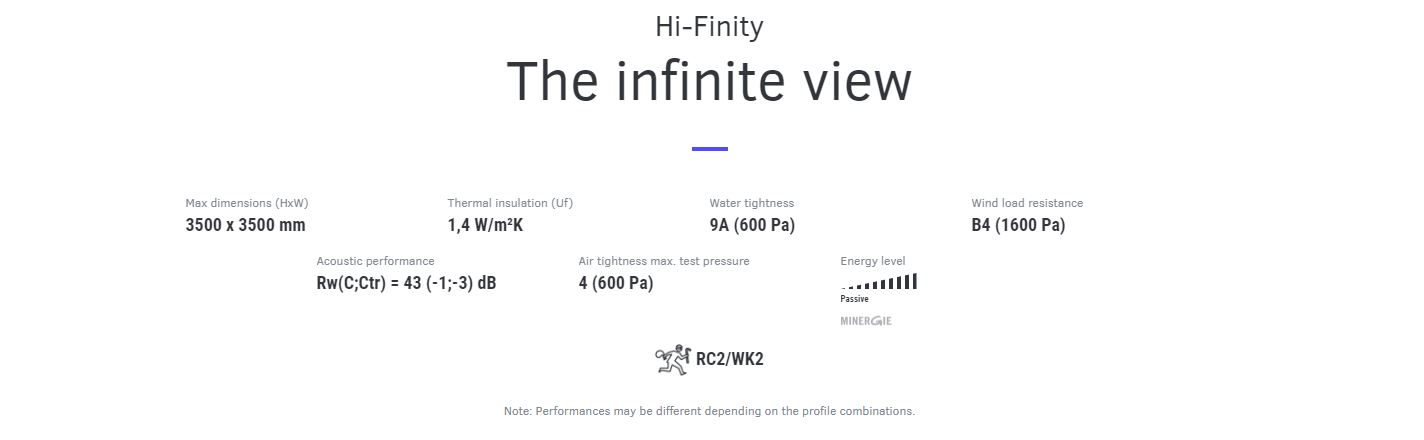

Technical information

Properties

Visible width meeting section35 mm
Max. height vent3500 mm
Max. width vent3500 mm
Min. Glass thickness36 mm
Max. Glass thickness54 mm
Thermal breakFibreglass Reinforced Polyamide Strips

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness9A (600 Pa)
Wind load resistanceB4 (1600 Pa)
Acoustic performanceRw(C;Ctr) = 43 (-1;-3) dB
Safety
Burglar resistanceRC2/WK2
Energy
Thermal insulation (Uf)1,4 W/m²K
